Carpentry Math

The carpentry math, used for most projects, can be narrowed down to some basic formulas and computations provided right here on this page.  The formulas below can be used to square a wall or deck frame (the Pythagorean Theorem), calculate the area of a circle, calculate the volume of a cylinder, calculate the circumference of a circle, and more.



Right Triangles - The Pythagorean Theorem

The Pythagorean theorem is used extensively in carpentry and construction.  Almost every carpentry project involves some combination of squares and triangles.



The square of the hypotenuse of a right triangle is equal to the sum of the squares of the other two sides.  The square of side A plus the square of side B equals the square of side C.

A2 + B2 = C2

The square of one side of a right triangle equals the square of the hypotenuse minus the square of the other side.  The length of the square of side A equals the square of side C minus the square of side B.

A2 = C2 - B2

 Pythagorean Theorem

If this sounds complicated, consider the 3-4-5 rule of a right-triangle.  It is the best way to square two walls.  Here's how it works - if one side of a right-triangle is three feet and the other side is four feet and the hypotenuse (or long side of the triangle) is five feet, then angle 'A' is 90 degrees (see diagram at right).  If you want to square something larger, you can use proportions of this same formula, such as 6-8-10.

52 = 42 + 32 or 102 = 82 + 62

 Pythagorean Theorem

How to calculate the square feet of a triangle

The area of a triangle is equal to one-half the product of the base and height.

A = .5 x (B x H)

Area of a triangle

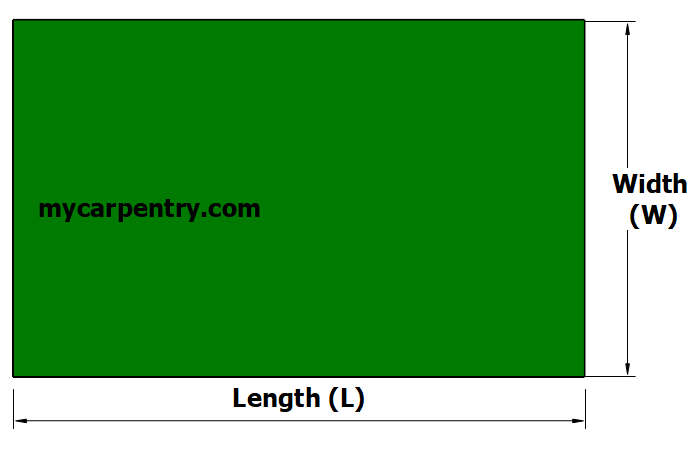

How to calculate the area of a rectangle

To calculate the area of a rectangle, simply multiply the length of side 1 by the length of side 2.

A = S1 x S2

Area of a rectangle

How to calculate the area of a trapezoid

To calculate area of a trapezoid, multiply its height by one-half the sum of the parallel sides.

A = .5 x (L1 + L2) x H

 Area of a trapezoid

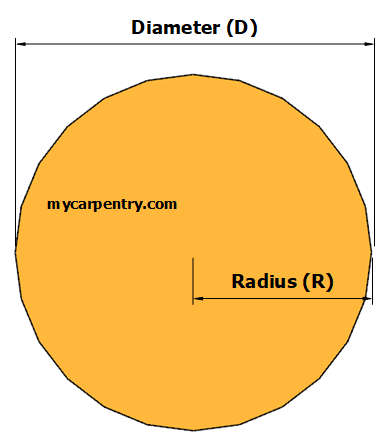

Calculate area of a circle

To calculate the area of a circle, multiply the circumference by one-half the radius.

A = C x .5(R)

Or, multiply the radius2 by 3.1416 (pi).

A = 3.1416 x R2

 Area of a circle

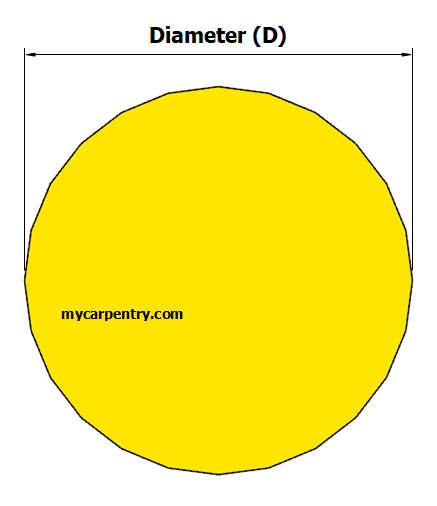

How to calculate circumference of a circle

To calculate the circumference of a circle, multiply the diameter by 3.1416 (pi).

C = 3.1416 x D

Circumference

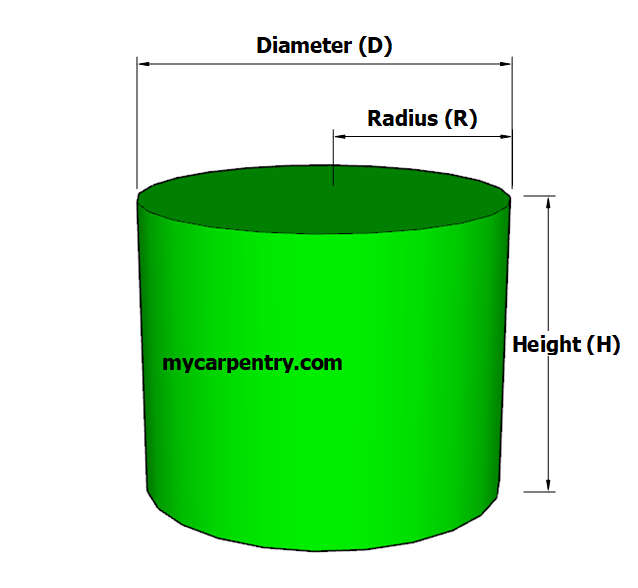

How to calculate the volume of a cylinder

To calculate the volume of a cylinder, multiply the radius squared x 3.1416 (pi) x the height of the cylinder.

V = 3.1416 x R2 x H

 Volume of a cylinder

If you know of any other formulas that you would like to see added to this carpentry math page, please contact-us.
