Building a Patio Cover

An Almost Free-Standing Example

Building a patio cover on my home was one of the best decisions I have ever made. I constructed this patio cover that attaches to the overhang on my house, and it is still standing strong and looking good after 15 years.

But there are scenarios where that design does not work. Maybe your existing roof was not designed to carry the additional load of a patio roof, or perhaps the local building code does not allow attaching a patio roof to your existing roof overhang. If this is the case, these almost-free-standing patio cover plans might be the design you are looking for.

patio cover plans
Free Standing Patio Cover Plans

This new patio cover plan replaces the ledger board (that you might attach to the existing fascia) with a 4x6 beam supported by 4x6 posts. When the 4x6 beam is in place and supported by the 4x6 posts, the existing roof does not carry any of the weight of the new patio cover roof.

The intention of these plans is not to replace engineered working drawings. Local building codes can vary significantly among the regions. Your local building code should determine the actual sizes of concrete footings, slabs, wood structural members, and fasteners. A structural engineer should determine if your existing structure can support the additional load factors of a patio cover. Before beginning construction, contact your building permitting authorities to obtain a building permit and to have your design reviewed so that it complies with local building codes and guidelines.


This plan is almost free-standing because the 4x6 beam does attach to the existing structure for stability.

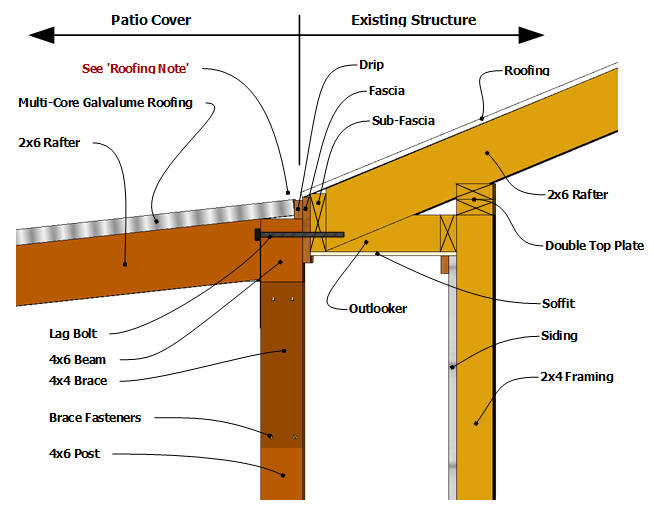

Patio Cover / Roof Connection Detail
Patio Cover / Roof Connection Detail

A continuous flow of roofing material or flashing is required at the intersection between the existing roof and the new patio cover roof (to prevent leaking). Follow the guidelines provided by the roofing manufacturer or your roofing contractor.


Before building a patio cover, please refer to the 2018 International Building Code for building codes related to patio covers.


Building a Patio Cover - A Free-Standing Example

Overview: The new patio cover will use Western Red Cedar 4x6 posts, 4x6 beams, and 2x6 rafters (of course, you can use Pressure-treated Treated Pine, Redwood, or any other suitable framing material to build your patio). The roof will use Multi-Core Galvalume metal roofing. The posts will be attached to the slab using galvanized post anchors, and the rafters will be attached to the beams using various straps, ties, and joist hangers.

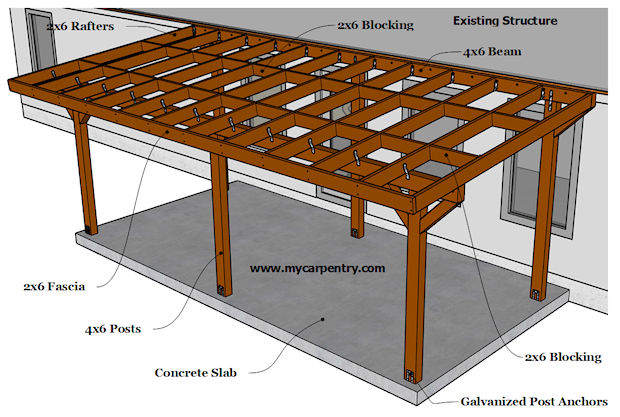

Free-Standing Patio Cover Plans
Free Standing Patio Cover Plans

Assumptions: A concrete patio slab is already in place with footings (at the locations of the 4x6 posts) capable of supporting the load of the new patio cover (including any continuous snow load). The footings are not shown in this example since they vary considerably depending on your location and soil composition.

The dimensions indicated in these drawings of the existing structure (size and elevation of the slab, roof overhang, etc.) are only an example. The structure and design of your home (and individual creativity) will influence your patio cover design and make it distinctive and unique.

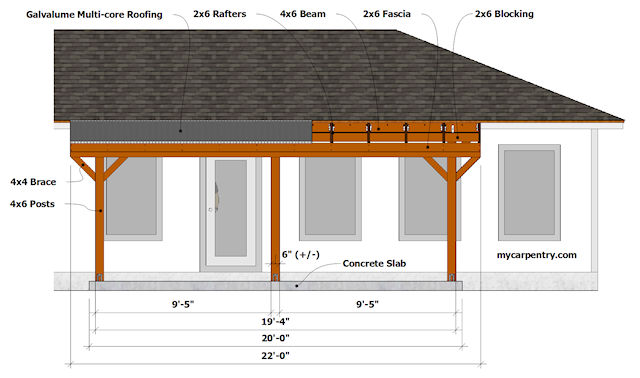

Front Elevation
Front Elevation

Since this patio cover design has supporting posts close to the existing structure, I tried to position the free-standing patio cover so the posts were not directly in front of windows and doors.

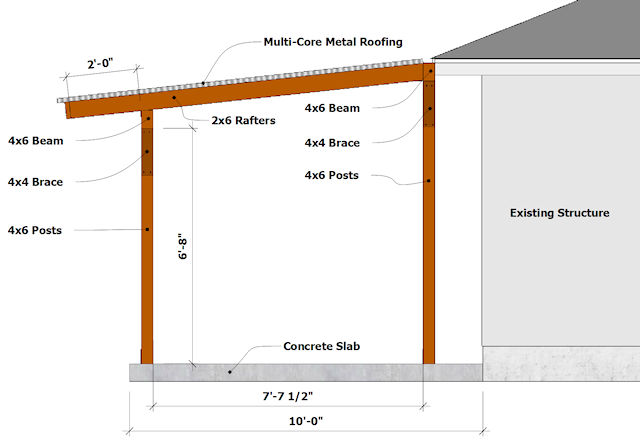

Side Elevation
Side Elevation

This patio cover plan example uses galvanized metal as the roofing material. You can alternatively use shingles for your roofing material, providing the roof pitch on your patio cover falls within the shingle manufacturer's specifications. This patio cover on mycarpentry.com shows an example of a shingle roof design.

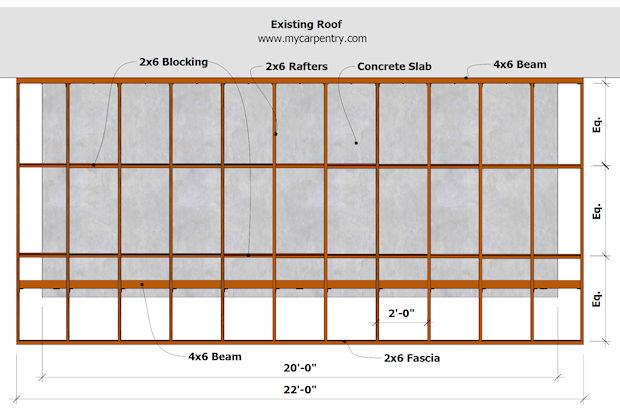

Roof Framing Plan
Roof Framing Plan

On the above roof framing plan, I added 2x6 blocking as a method of attaching the metal roofing material to the roof structure (of course, there are other ways to do this). If you use shingles on your patio cover, you can eliminate this blocking.


Tip: Purchasing 4x6 beams 22 feet long may be possible, but not very practical. I suggest purchasing the 4x6 beams @ 12'. You can cut each to the desired length and break the two sections in the middle of the center posts.

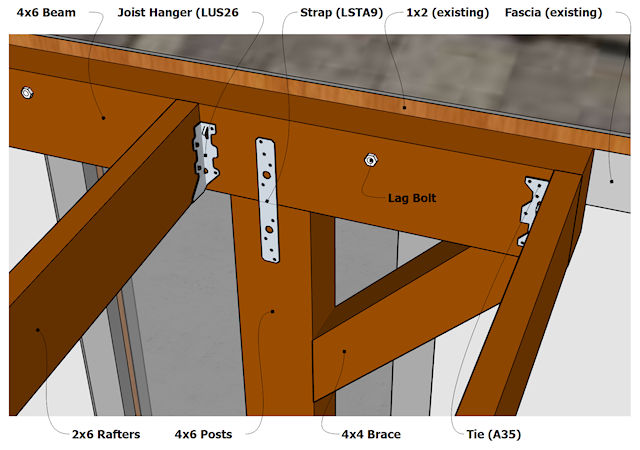

Roof Plan - Top Right
Roof Plan - Top Right

The above roof detail shows the upper beam attached to the existing structure (using lag screws), with the appropriate ties, straps, and joist hangers in place.

Note: When installing any structural hardware, you might find it easier to initially toenail the rafters to the beams to hold them in place before you install the straps and ties.

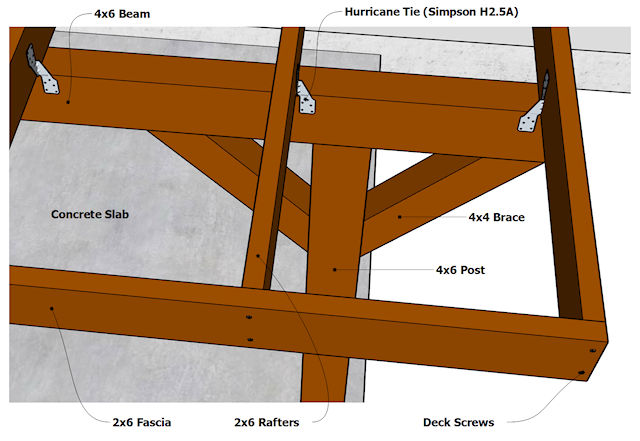

Roof Plan - Front Right
Roof Plan - Front Right

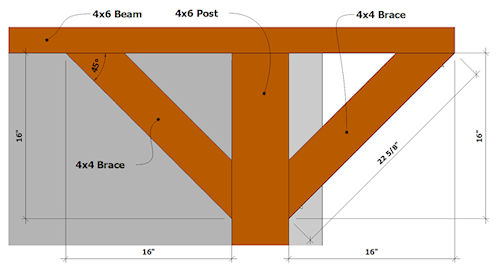

On the brace detail below, the beam extends past the 4x6 post 16". Using the Pythagorean Theorem, you can determine the length (long point to long point) of the brace.

Building a Patio Cover - Brace Detail
Building a Patio Cover - Brace Detail

We hope you find these patio cover plans helpful as you design, plan, and build your own patio cover. If you have any questions about these plans, please don't hesitate to Contact Us.
